FCU N
FCU duct-connected fan coils are designed to provide a preliminary air treatment both for small-sized centralized installations and for installations with fun-coils unists. They are available in 7 models with an air flow rate ranging from 930 to 4.300 m3/h. The possibility to combine FCU units with a series of accessories, both on the outlet and on the intake side, makes them suitable for different uses, starting from the simple functions of cooling and/or heating up to treatments such as filtering, mixing, external air suction, re-heating both through water and electrical.

It is available in two basic versions: one for horizontal installation, having a reduced length, and one for vertical installation.

These units consist of an aluzinc casing, provided with a thermal insulation layer made of polyethylene and polyester. All units are equipped with: a synthetic eff. EU3 filter, removable on guide rails, a heat-exchange coil with copper pipes and aluminium wings, a stainless steel AISI 304 condensate trap and double-suction fans with direct coupled motor. All units (except for 09 size because of its reduced electrical absorption) are also equipped with an electrical connection box with connectors protected by a relay.

– Compact dimensions

– Stainless steel AISI 304 condensate trap

– Motorized fan group, that can be inspected from the bottom

– Wide range of accessories enabling the units to be more flexible and suit different application needs.

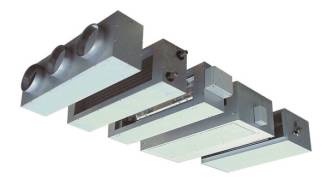

Fan coils for horizontal and vertical installation
