TAU N

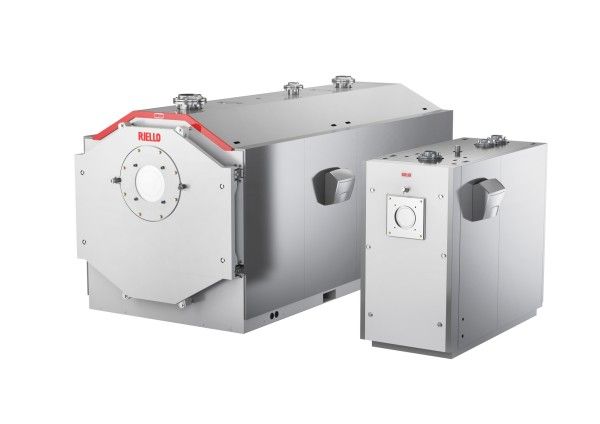

TAU N is a condensing floor standing boiler, with high water content for heating room installation; suitable for heating and domestic hot water production in combination with a proper water tank .

Three-pass boiler, in which all the components in contact with the flue gas smokes are in titanium-stabilized stainless steel, designed on the principle of heat stratification: the combustion chamber at the top and the tube bundle at the bottom (smooth pipes with removable turbulators), allow to optimize heat exchange and energy efficiency, so as to obtain high efficiency, thanks to the condensation technique. The generator has been designed with a structure capable of containing thermal expansions; particular attention has been paid to the thermal insulation of the boiler body, the painted steel panels and the door, with the use of high density glass wool mats.

Some models are also available in a modular version. The models up to 1450 kW are developed with a vertical structure with overlapping planes, to facilitate handling and make easier the introduction into the heating room.

The new 1750÷3000 models are developed on a "square" structure with a single planking, to maintain the high water content and, at the same time, guarantee maximum efficiency.

To make easier the inspections, maintenance and cleaning of the internal parts, the front door and the closing of the smoke

chamber can be fully opened.

– Reduced average temperature of the body and quick start-up time

– Several solutions thanks to the combination with RIELLOtech control panels

– Built-in drain condensate

– Maximum operating pressure 6 bar.

In conformity with Directive 2009/125/EC
Condensing boilers made of stainless steel with three flue gas passes, with a high water content, suitable for the operation with gas jet burners
