EVOSOL is a solar regulation able to manage 9 kinds of plant layouts and meet all different domestic and professional requirements.

EVOSOL is able to manage a modulating solar circulator with constant ΔT regulation between solar collector and cylinder, thus allowing the operation of the system even in case of low radiation.

The user-friendly menu and the display allow to control easily the available functions and the selected layout. The frontal access to components eases the electrical wiring; the wide range of accessories allows to customize any system.

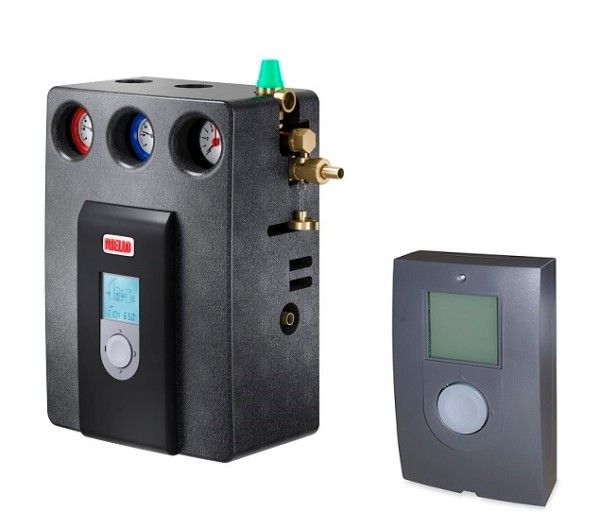

RSS is a solar pump station available in four versions: flow and return with differential controller EVOSOL assembled on the system (MRS), flow and return (MR) and only return (R).

The pump stations RSS MRS and MR are provided with circulator pump with PWM controlling, safety devices, filling taps, non-return valve, flow and return temperature gauge. RSS R is provided with circulator pump both for ON-OFF and PWM controlling, safety devices, filling taps, flow regulator and flow meter, non-return valve and temperature gauge.

Pump station RSS
Differential controller EVOSOL
