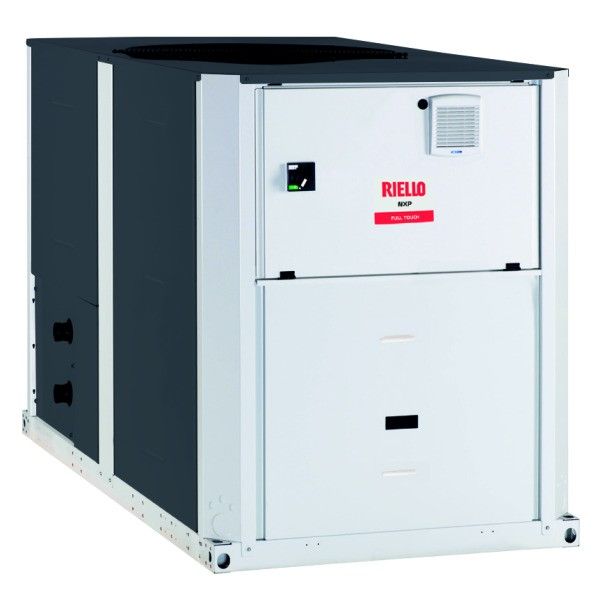

NXH 044÷164

The NXH series units are reversible heat pumps for heating and air conditioning of commercial users for outdoor installation, available with various options to choose from such as: one pump, two pumps, with or without tank, with or without partial recoverer.

Maximum reliability and efficiency thanks to the high level of partialization: for powers up to 121 kW with two/three single circuit Scroll compressors, while for powers of 142 KW and 162 kW with four compressors divided into two circuits. The waterside exchanger is of the brazed plate type. The units are equipped with axial fans with external rotor with variable speed, to ensure operation with outdoor temperatures down to -10°C in heating mode and up to 48°C in air conditioning mode.

Intuitive interface thanks to the touch screen control with possible M-BUS connection.

– CLASS A + efficiency

– Plug & Play solution with pump(s) on board the machine (optional)

– Low aesthetic impact thanks to the reduced height

– Easy maintenance by removing the service panels

– Air exchanger protection grille

– Touch screen control panel with possible M-BUS connection

Silenced reversible air-water heat pump with helical fans from 43 kW to 162 kW, with ecological refrigerant R410A
